SPECIFICATIONS

Battery Included: Yes

Brand: Huepar

Brand Name: Huepar

Certification: CE,FCC,RoHS

Diode: Germany Osram

High-concerned chemical: None

Is Smart Device: Yes

Laser Class: Class 2

Laser Color: Green Beam

Leveling Time: ≤3S

Leveling/Compensation Range: 3°±1°

Measurement Model: 16 Lines

Model: P04CG Set

Model Number: P04CG

Origin: Mainland China

Power Source: Li-ion Battery 11.1V(12.6V Max) 2600mAh

Precision: ±3mm/10m(±1/9 in. at 33 ft)

Reference Working Distance: ≥25m

Reference Working Distance (with Laser Detector): ≥40m/ 130ft

Size: 36.8*13.7*29.3cm

Type: Vertical & Horizontal Lasers

Wavelength: 505-520nm

Huepar 4D 16-Line Self-Leveling Laser Level with Green Beam,Remote,Receiver/Tripod,High Precision Leveling Tool for Construction

Huepar 4x360° Laser Level Specifications:

Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output

Laser Wavelength: 505-520nm

Horizontal/Vertical Accuracy: ±3 mm at 10 m/±1/9 inch at 33Ft.

Leveling/Compensation Range: ±4°

Working Distance (Line): 40m/130Ft (100 LUX), 60m/200Ft. with Huepar Receiver LR-5RG/LR-6RG

Operating Time with Li-ion Battery: 7 hours with all laser beams on

Power Source: 10.8V / 2600mAh Li-ion battery

Package: Hard Carry Case

IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough

Operation Temperature Range: 14℉ ~ 122℉ (-10℃~ 50℃)

Mount Size: 1/4"-20

WARNING:● Do not point the laser beam directly into the eyes.

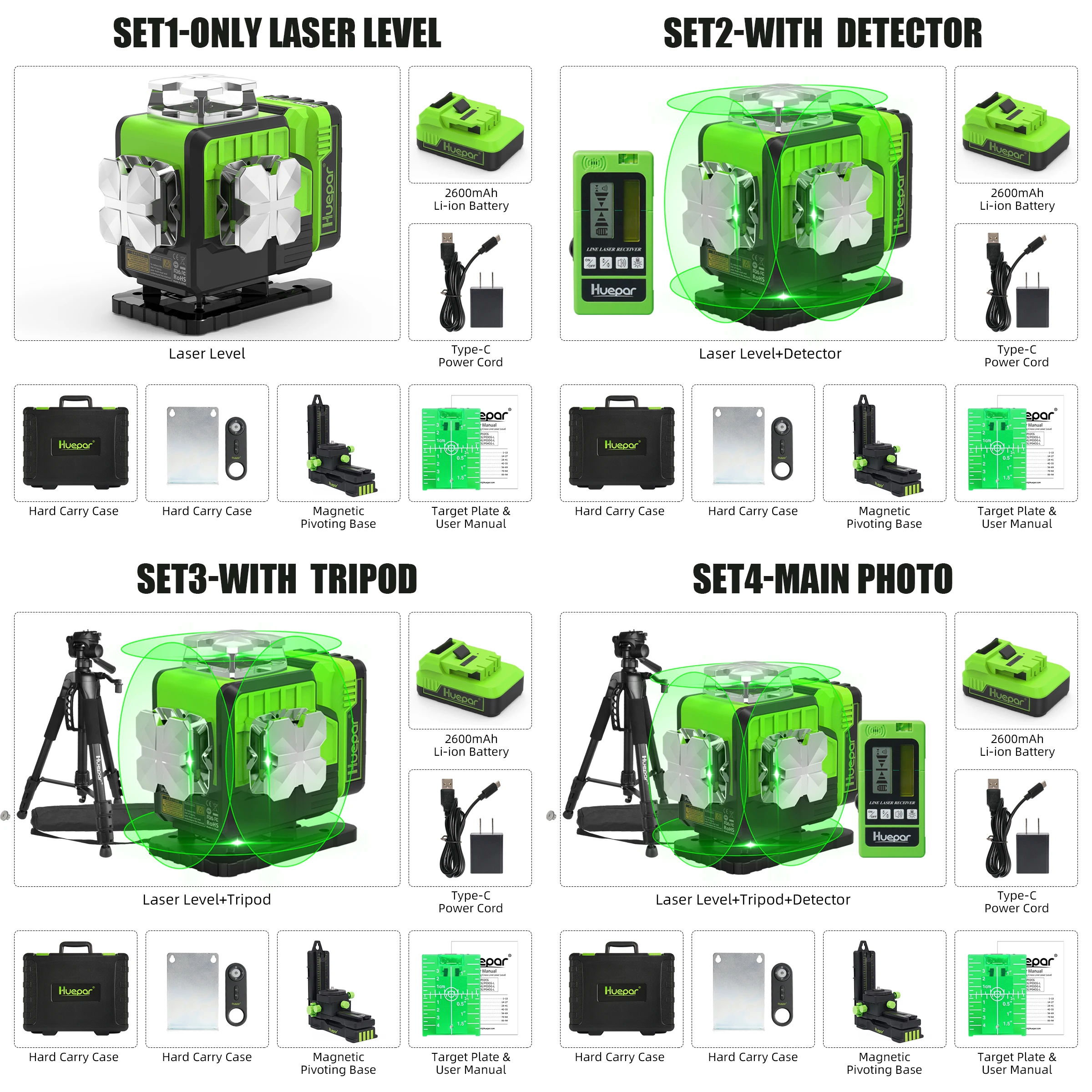

Package Contents:

SET1-Only Laser Level:

1 x Huepar P04CG 4D Cross Line Laser Level

1 x Bluetooth Remote Control

1 x Rechargeable Li-ion Battery

1 x Power Adapter

1 x Type-C cord

1 x Magnetic Bracket

1 x Steel Sheet

1 x Laser Target Plate

1 x Hard Carry Case

1 x User Manual

SET2-With Detector:

1 x Huepar P04CG 4D Cross Line Laser Level

1 x Bluetooth Remote Control

1 x Rechargeable Li-ion Battery

1 x Power Adapter

1 x Type-C cord

1 x Magnetic Bracket

1 x Steel Sheet

1 x Laser Target Plate

1 x Hard Carry Case

1 x User Manual

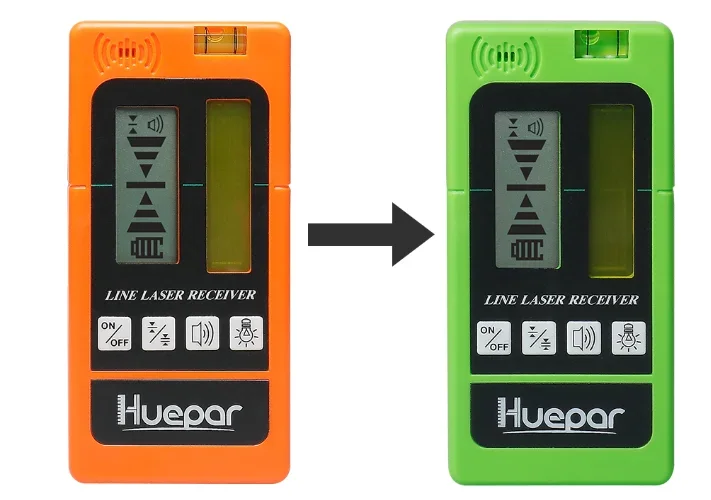

1 x LR-5RG Laser Detector( Green Shell or Red Shell will be sent randomly)

SET3-With Tripod:

1 x Huepar P04CG 4D Cross Line Laser Level

1 x Bluetooth Remote Control

1 x Rechargeable Li-ion Battery

1 x Power Adapter

1 x Type-C cord

1 x Magnetic Bracket

1 x Steel Sheet

1 x Laser Target Plate

1 x Hard Carry Case

1 x User Manual

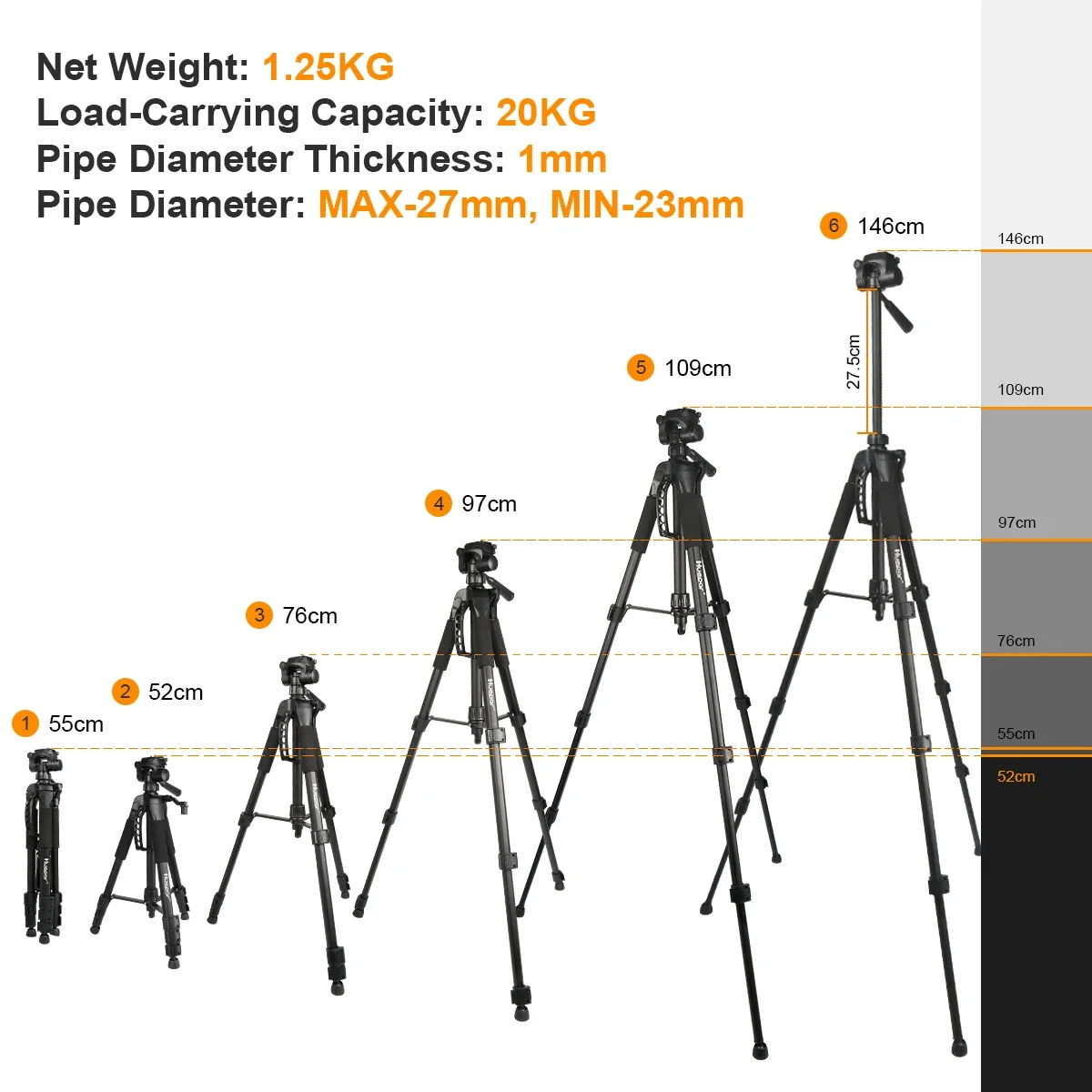

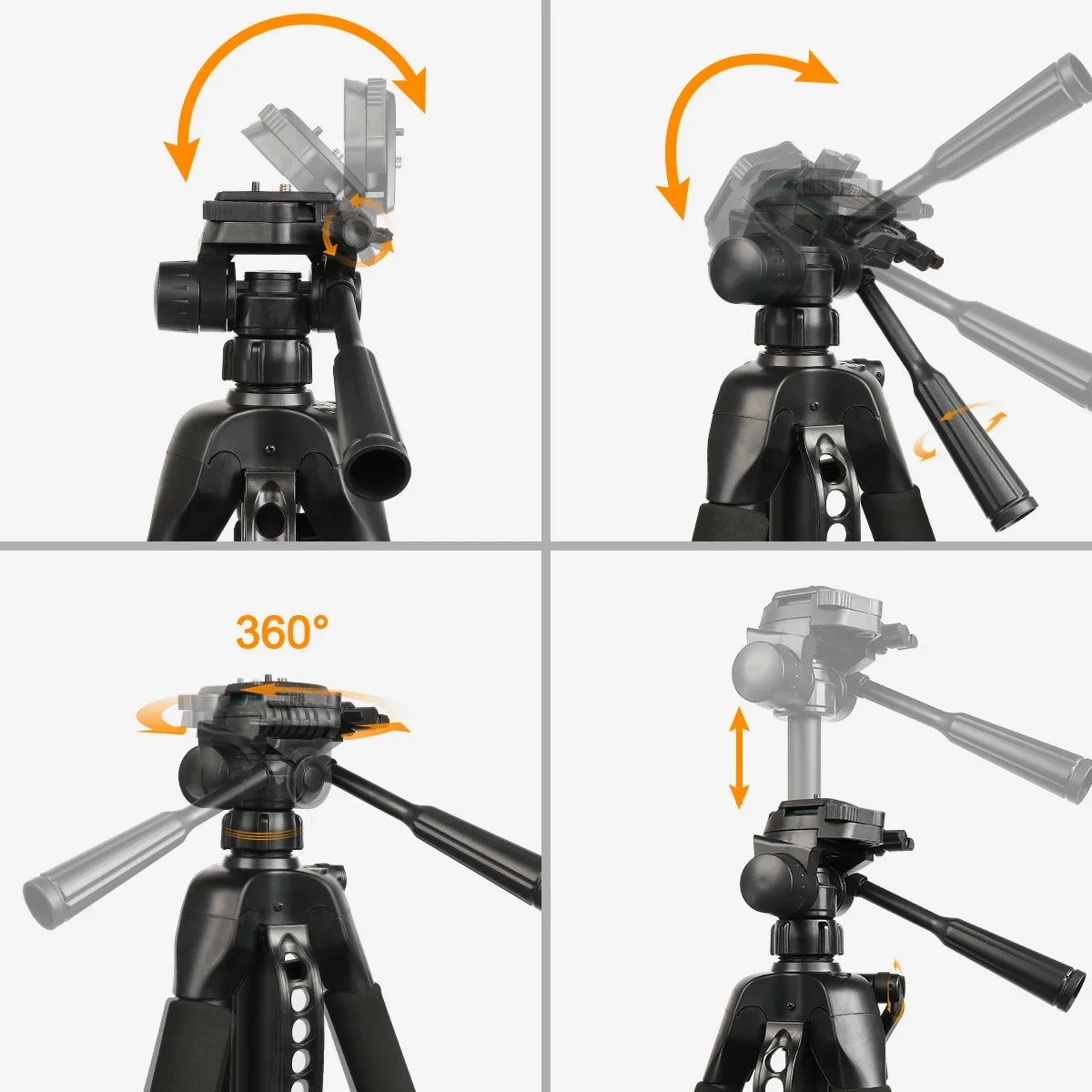

1 x TPD14 Tripod

SET4-Main Photo

1 x Huepar P04CG 4D Cross Line Laser Level

1 x Bluetooth Remote Control

1 x Rechargeable Li-ion Battery

1 x Power Adapter

1 x Type-C cord

1 x Magnetic Bracket

1 x Steel Sheet

1 x Laser Target Plate

1 x Hard Carry Case

1 x User Manual

1 x TPD14 Tripod

1 x LR-5RG Laser Detector( Green Shell or Red Shell will be sent randomly)

Features:

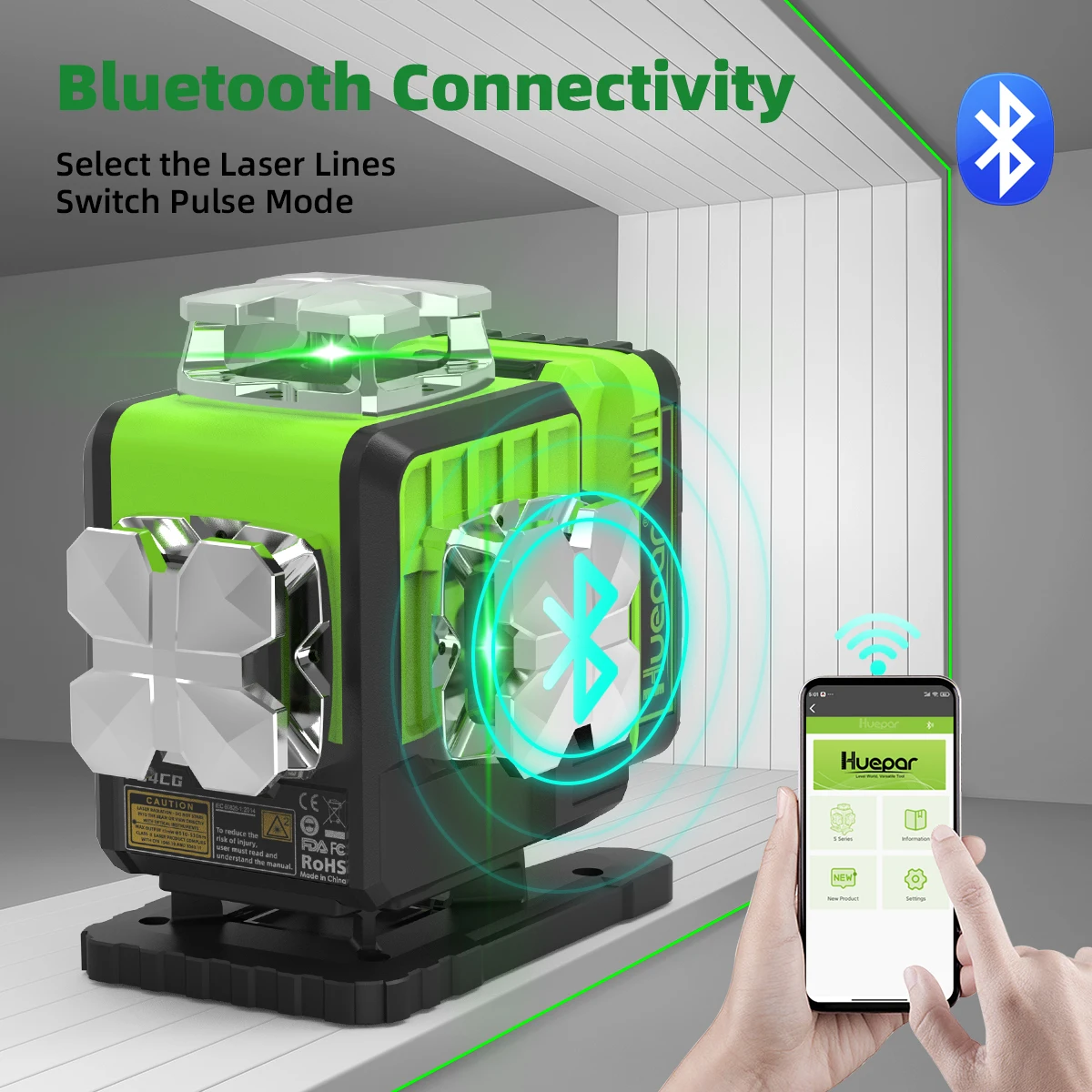

Bluetooth & Remote control:

Bluetooth connectivity enables to control the setup of the laser from across the room with Huepar App on smart phone or remote control. The App and remote control can switch ON/OFF the laser lines and pulse mode, select the laser planes. Huepar App also provides out-of-level alarm. The laser tool can connect two Bluetooth devices simultaneously. With the remote control, your alignment job becomes simple and fast.

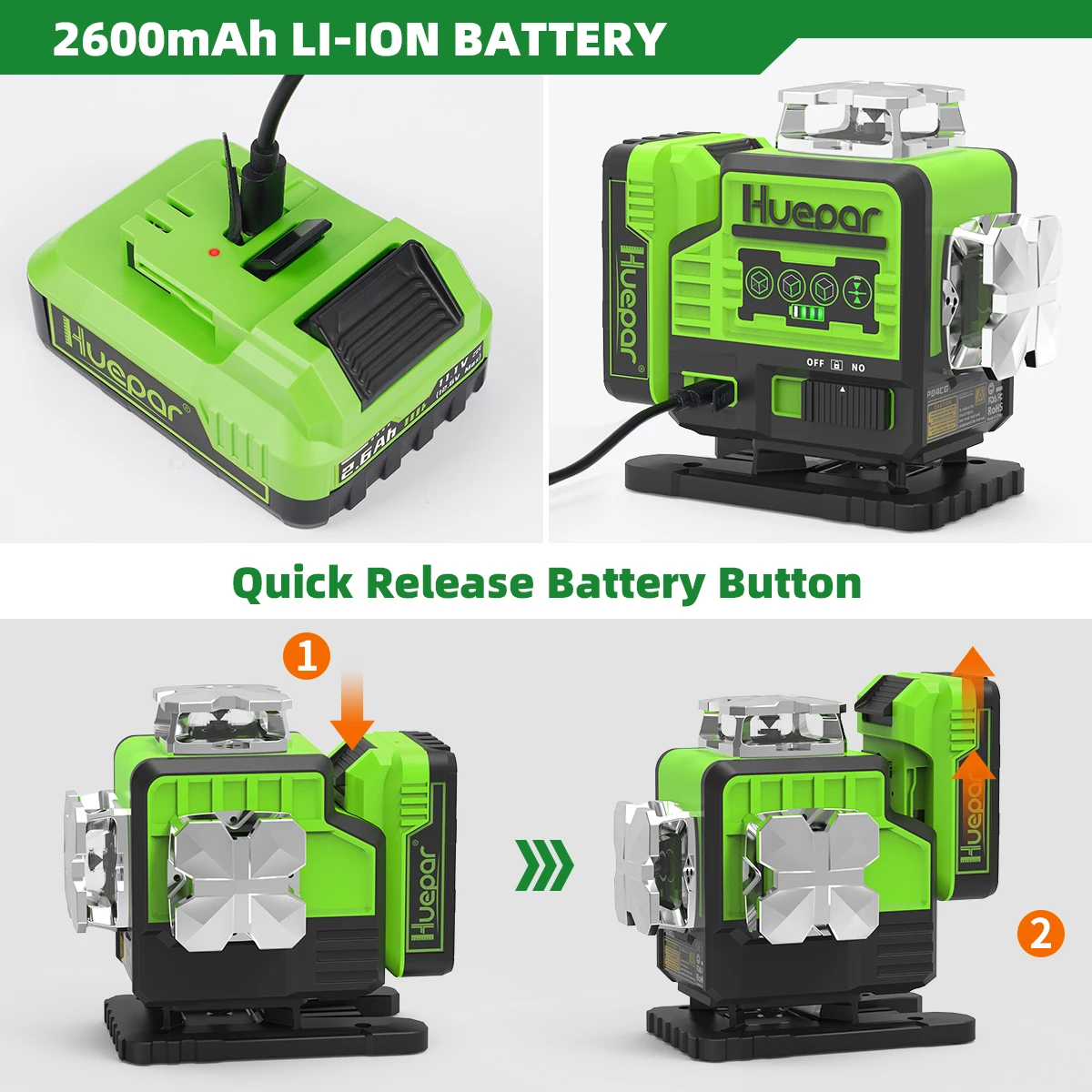

Large capacity Li-ion battery&Two Power Methods

10.8V / 2600mAh Li-ion battery and provides 7 hours running time.

The Li-ion battery pack can be quick to release and install is very easy to use.The Li-ion Battery can be charger separately and the four power indicators on the battery allow users to know the charging status. When taking out the battery, the cross line laser level can be used at the job site by plugged in directly. With Type-C charging port, the laser level can also be charged by phone, laptop, power bank, car charger, etc.

Multi functional laser tool:

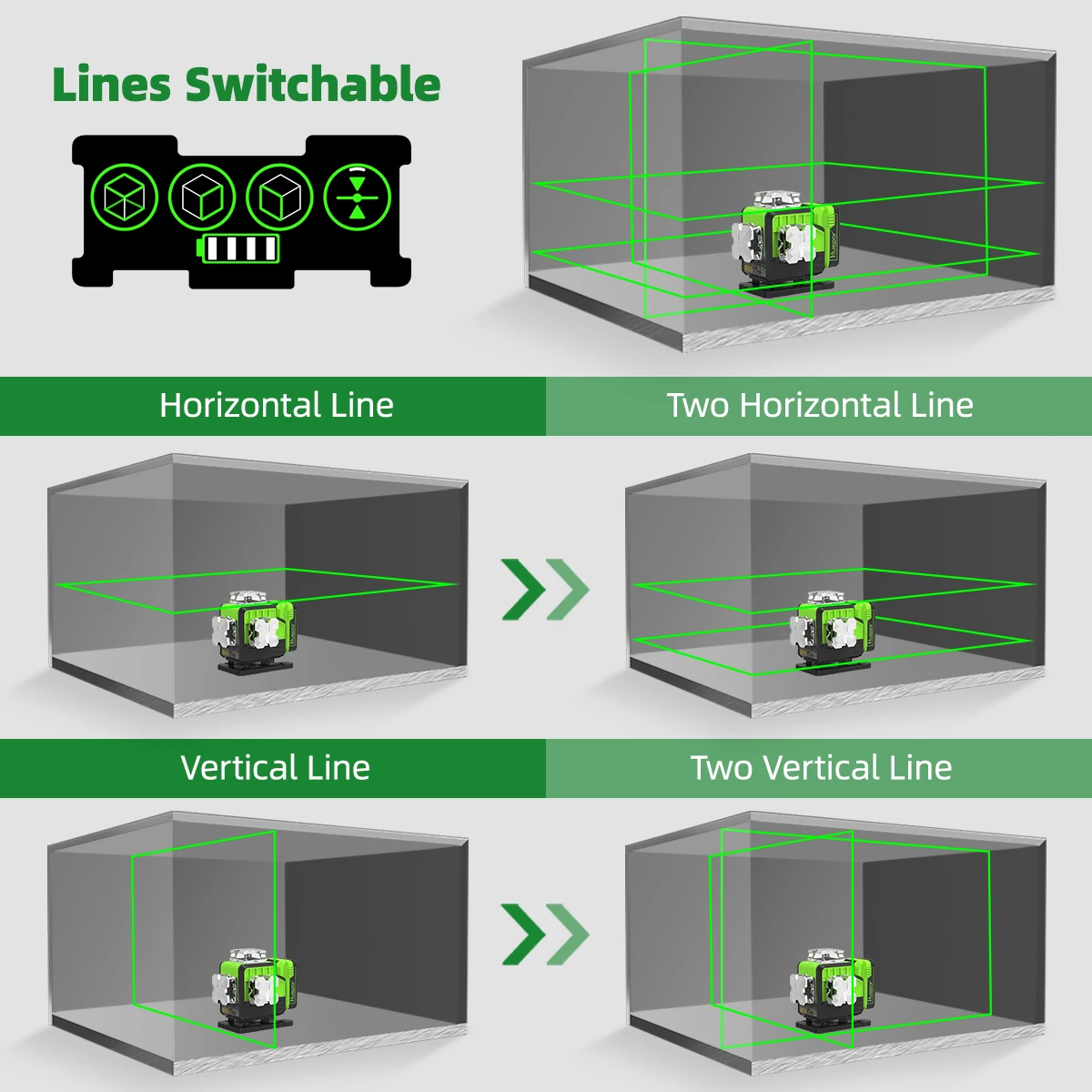

Huepar Laser Level have two horizontal 360° plane, two vertical 360° planes, 16 laser lines, which can cover the floor, walls and ceiling all around the room. Horizontal lines and vertical lines cross at 90°angles help you to visualize quickly and finish square layout. Each button on this laser level corresponds to a single laser line, you can easily choose to turn on/off any laser line.

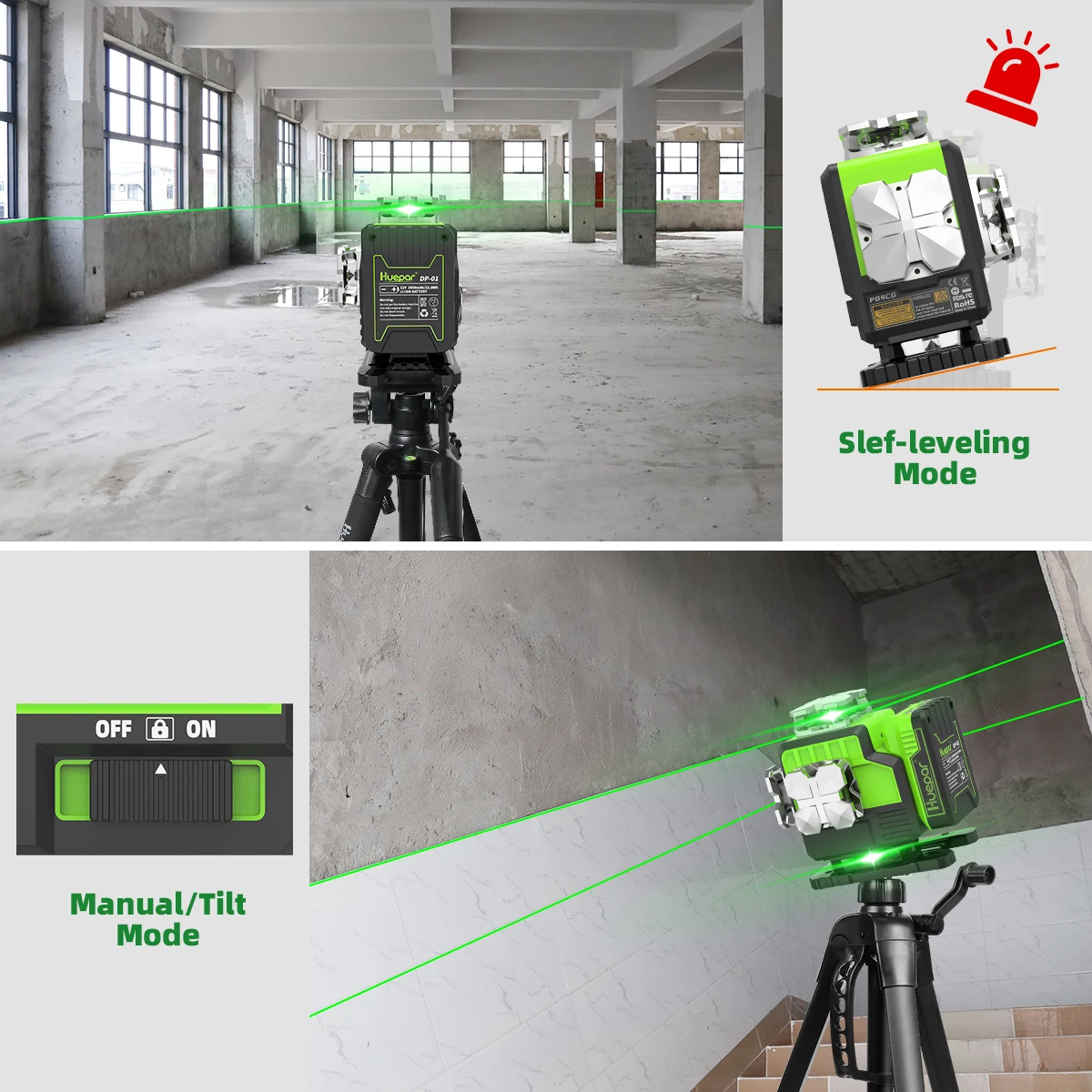

Self-leveling mode&Manual mode

Self-leveling mode:

When the pendulum slides to the“ ON” position, the self-leveling mode is enabled. The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4.

Manual mode:

When the pendulum is in the middle position, the laser tool can be placed for use at any angle.

The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.

The locked icon will be displayed on Huepar APP to remind user it is in manual mode now.

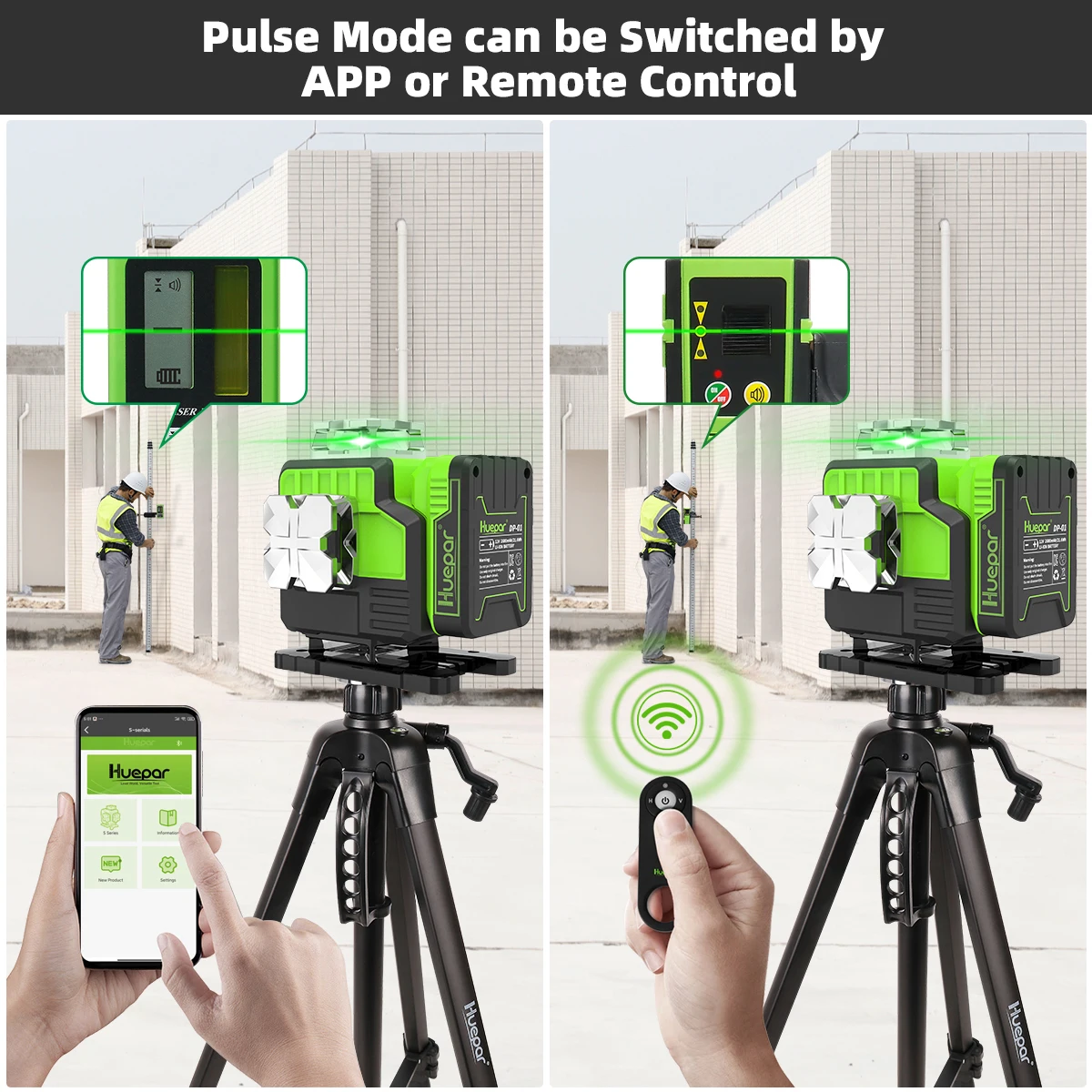

Pulse Mode:

When connecting with Huepar APP and the Bluetooth Remote Control, the pulse mode can be switched ON/OFF via APP. Pulse mode extends the working range up to 200Ft in brighter working conditions when using with Huepar Line Laser Receiver. It is compatible with Huepar LR-6RG / LR-5RG Laser Detector only.

Note: Keep the pulse mode on when using with a receiver.

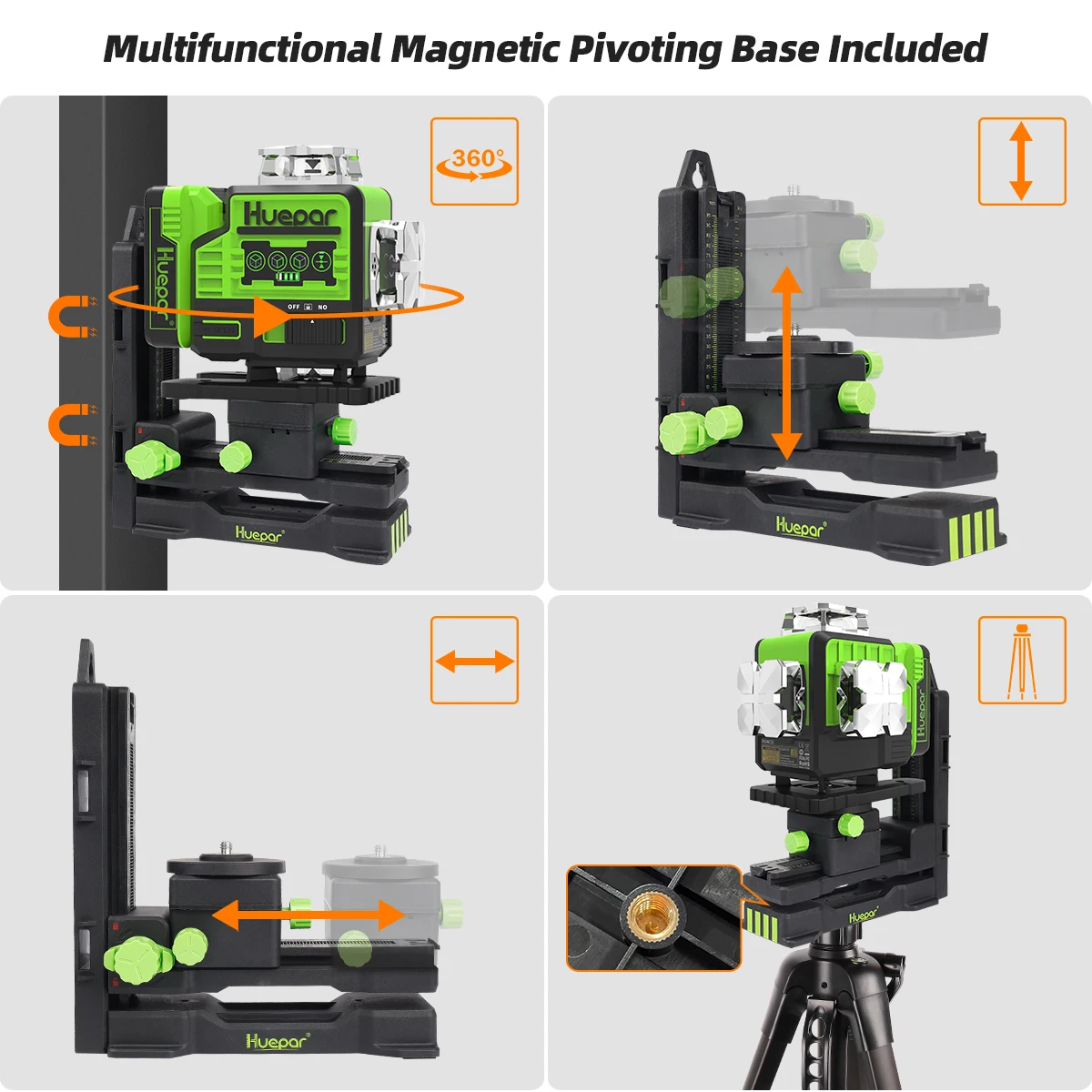

Multi-function magnetic bracket:This green line laser offers 1/4"-20 and mounting threads for being fixed on tripod or magnetic bracket. The strong magnetic bracket allows for quick positioning to metal surfaces helping hang the laser level for wall applications and can be rotated to the required angle. The magnetic base also has 1/4"-20 mounting threads to suit for different tripod threads.

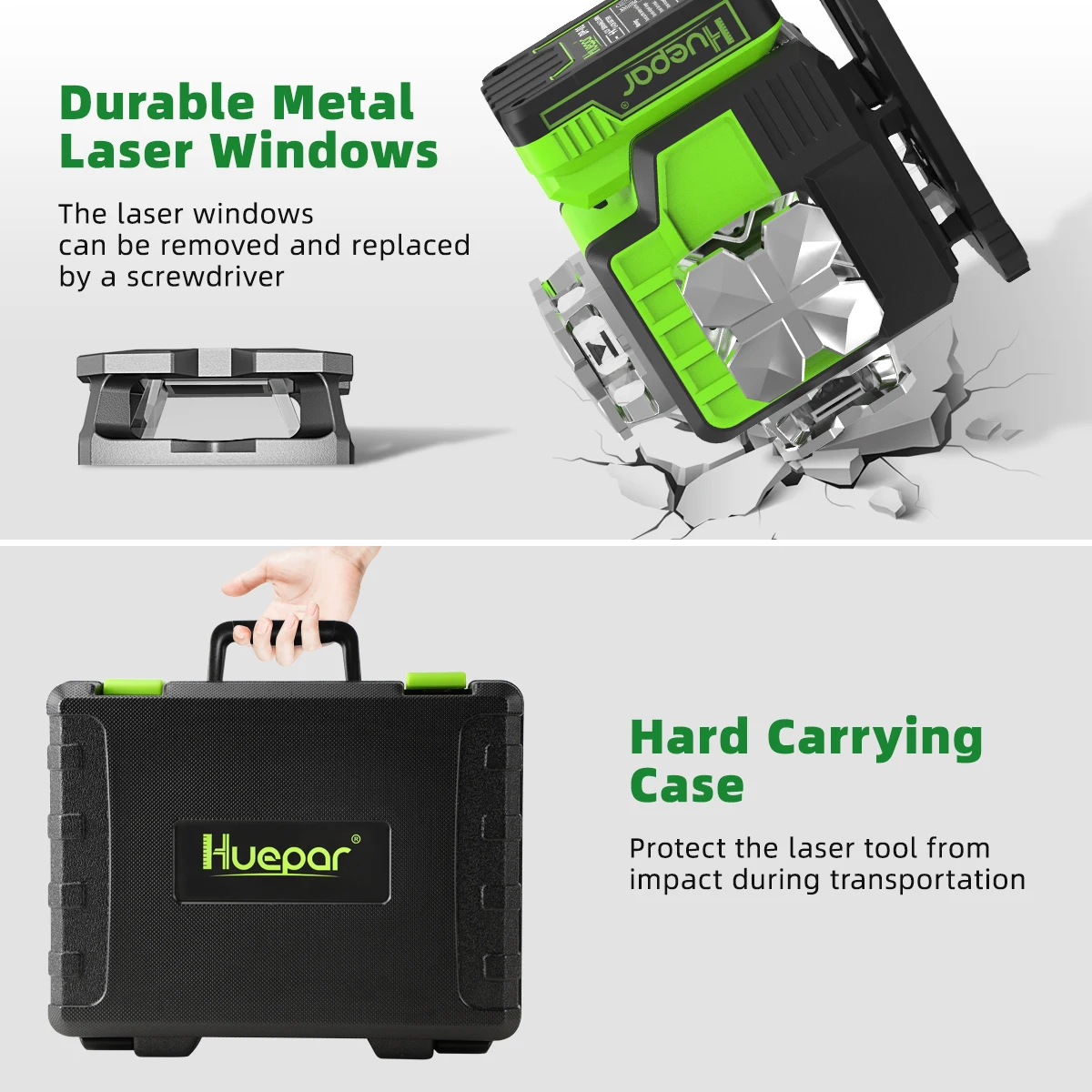

Metal laser window:Over-molded metal laser window with IP54 water/dust resistance withstands tough job site conditions and can be removed and replaced with a screwdriver.

The kit comes with a hard carry case bringing much more convenience to carry and store the laser tool.
